1. 產品簡介 Product introduction

DA3K3M13-70C 是一款 OBC 開關電源變換器，采用先進的全數字諧振調頻技術，效率

高。與同類產品相比，更加節能、體積小、工作可靠。充電方式采用自有專利技術，恒壓、

恒流、恒功率狀態自動轉換充電方法，有效節省充電時間；具有有源功率因數校正功能，對

電網低污染；輸入和輸出電壓范圍寬；采用 CAN2.0B 通信協議；具有智能充電功能、智能監

測故障告警保護功能、燒寫、故障查詢等功能；同時內置 12V 供電池管理系統喚醒信號電源。

具有與充電樁連接的控制導引功能（可選）等。

該款電源專為新能源汽車高壓電池充電而設計,與國際一流汽車電源廠商完全同步，各項

性能指標已達到或超越國際同行水平，無故障運行時間更長。該系列電源也可適用于需要恒

壓、恒流、恒功率充電的各個領域。此充電機僅支持對電池充電。

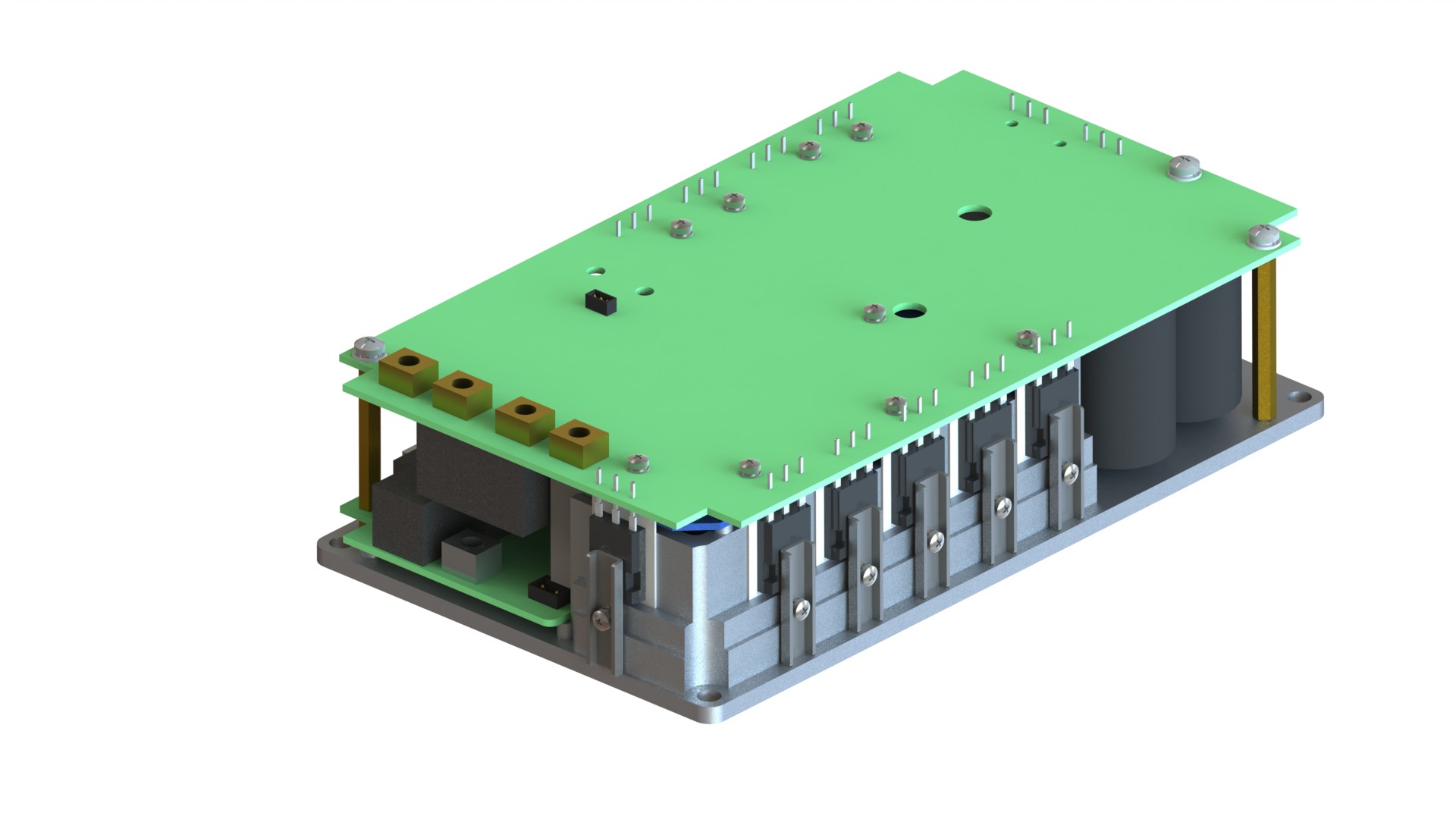

DA3K3M13-70C is an OBC switching power converter.The charger adopts advanced

all-digital resonant frequency modulation technology, which has high efficiency, high power, small

size and reliable operation. The charging mode adopts constant power,constant voltage and constant

current automatic state transition, which effectively saves charging time. With active power factor

correction, zero pollution to the grid, wide input and output voltage range, using CAN2.0B

communication protocol. With intelligent charging function, it has intelligent monitoring fault alarm

protection function,programme function and fault inquiry function; it also has built-in 12V

independent auxiliary power supply for power supply of car battery management system.

This power supply is specially designed for charging high-voltage batteries of new energy vehicles.

which is completely synchronized with the world-class automobile power supply manufacturers.

The performance indicators have reached or exceeded the international peer level, and the fault-free

running time is longer. The charger only supports charging the battery.

產品特點：

Product Features:

a. Automatic switching between constant power and constant voltage states, effectively saving charging time. 恒功率與恒壓狀態自動轉換，有效節省充電時間。

b. Active power factor correction ≥0.99.

有源功率因數校正≥0.99。

c. Input over/under voltage protection.

輸入過欠壓保護。

d. Output over/under voltage protection.

 輸出過欠壓保護。

e. Output overcurrent protection.

輸出過流保護。

f. Output reverse connection protection.

 輸出防反接保護。

g. Overtemperature protection.

過溫保護。

h. CAN communication intelligent fault alarm, protection function.

CAN通訊智能故障告警、保護功能。

i. Built-in 12V auxiliary power supply for wake-up of the vehicle battery management system.

內置12V輔助電源，用于汽車電池管理系統喚醒。

j. Control guide function for connection with charging piles.

具有與充電樁連接的控制導引功能。

k. Remote detection, programming, fault query, and other functions.

具有遠程檢測、燒寫、故障查詢等功能。
