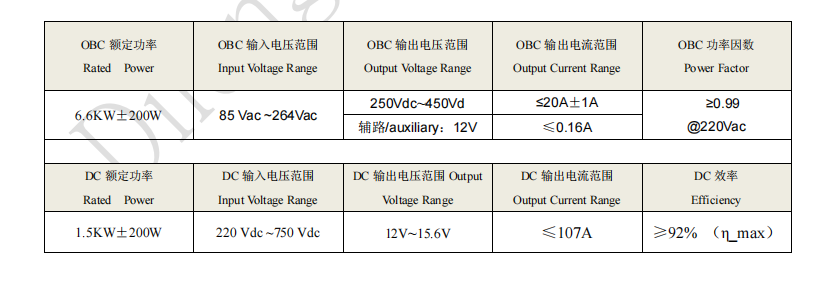

1.產品簡介/Product introduction

 CDU8KM64 專門為純電動汽車量身打造的可自由組合 OBC+DC / DC+CDU , 即充

電機、DCDC、高壓分配盒 、 三合一集成、轉換于一體的開關電源變換器。OBC 采用先進的全數字諧振

調頻技術，效率高、功率大、體積小、工作可靠，充電方式采用恒功率與恒壓自動狀態轉換，有效地節省

了充電時間，具有有源功率因數校正對電網零污染，輸入和輸出電壓范圍寬，采用 CAN2.0B 通信協議，

具有智能充電功能，具有智能監測故障告警保護功能；同時內置獨立輔助電源，用于汽車電池管理系統供

電。DC/DC 高壓輸入低壓輸出采用先進的全數字化設計，高功率密度、體積小，工作可靠，具有恒流與

恒壓自動狀態轉換, 采用 CAN2.0B 通訊協議，具有智能充電功能，具有智能監測故障告警保護功能。

該款電源專為新能源汽車高壓電池充電及降壓轉換而設計，減少了整車線束接頭數量及分體電源安裝帶來

的麻煩，電源采用水冷設計，與國際一流汽車電源廠商完全同步，各項性能指標已達到或超越國際同行水

平，無故障運行時間更長，減少了因選用風機散熱方式存在的自然缺陷的使用風險。

CDU8KM64 is a liquid-cooled, specifically designed for pure electric vehicles, can

freely combine OBC+DC/DC+CDU, and high-voltage distribution unit ‘3-in-1’, conversion switching

power converter. OBC charger adopts advanced resonance technology, high efficiency, high power,

small size, reliable work, charging mode using constant power and constant voltage automatic state

transition, effectively saving the charging time. Wide input and output voltage range with active power

factor correction, zero pollution to the grid. Using CAN2.0B communication protocol, with intelligent

charging function, intelligent monitoring fault alarmprotection function, Built-in battery management

system wake-up signal to power for BMS. DC-DC high voltage input and low voltage output adopts

advanced fully digital technology, high power density, small size, reliable working method, with constant

current and constant pressure automatic state conversion. Using CAN2.0B communication protocol, with

intelligent charging function, with intelligent monitoring fault alarm and protection function.This power

supply is specially designed for high voltage battery charging and buck conversion of electric vehicles.

Reducing the number of vehicle wiring harness connector and the trouble caused by split power supply

installation.The power supply adoptsliquid-cooled design, synchronizing with world-class automotive

power supply manufacturers, the performance of the unit have reached and exceeded the international

counterparts horizontal. Longer trouble-free operation time and reducing the natural defect risk caused

by air cooling method.
