1.產品簡介/Product introduction

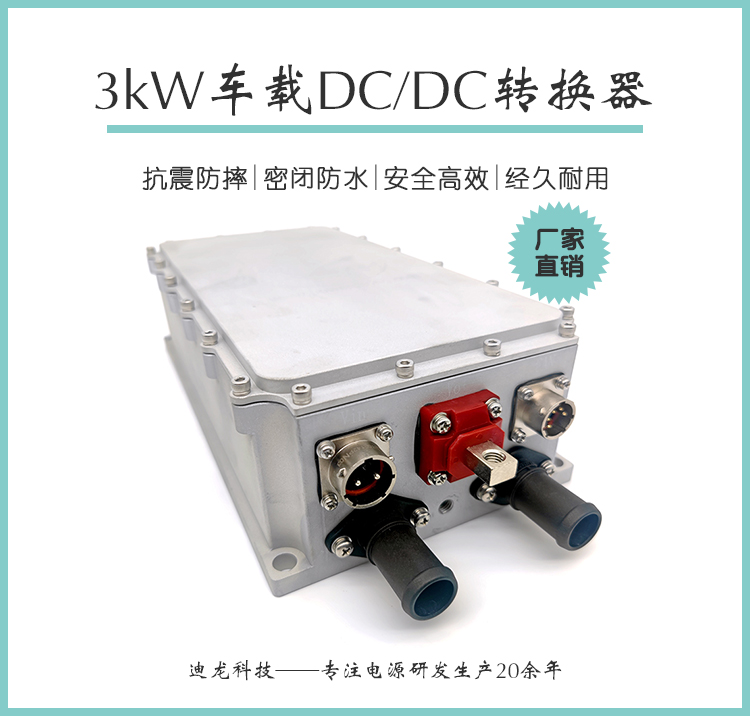

DE3KS21A 是我公司專門為純電動汽車量身打造的一款大功率、小體積 DC/DC

變換器。變換器具有超寬的輸入范圍，可工作在輸入電壓 200Vdc 至 950Vdc 之間，解決了不

同車型需選用多種 DC 變換器的困擾，避免重復設計，達到通用化、模塊化的目的；采用數

字化處理技術，自帶 CAN 通訊，能夠向 CAN 總線上報數據，同時接受 CAN 總線的開關機

命令，可實時控制和監測 DC 變換器工作狀態。與國際一流汽車電源廠商完全同步，各項性

能指標已達到或超越國際同行水平，無故障運行時間更長。該系列電源也可適用于需要恒壓、

恒流電源的各個領域。

DE3KS21A is a high-power, small-volume DC/DC converter specially designed for

pure electric vehicles . The converter has wide input voltage range and of 200Vdc to 750Vdc,

solved the problem of choosing multiple DC converters for different vehicle type, avoiding repeated

design and achieving the purpose of generalization and modularization;It adopts digital processing

technology, with CAN communication, able to report data to CAN bus and accept power on

command of CAN bus at the same time, monitoring the working status of DCDC converter in real

time. Synchronizing with the world-class automobile manufacturers, the performance indicators

have reached and even exceeded the international peer level, with longer fault free operation time,

can be also applied to field needing constant voltage and constant current field.

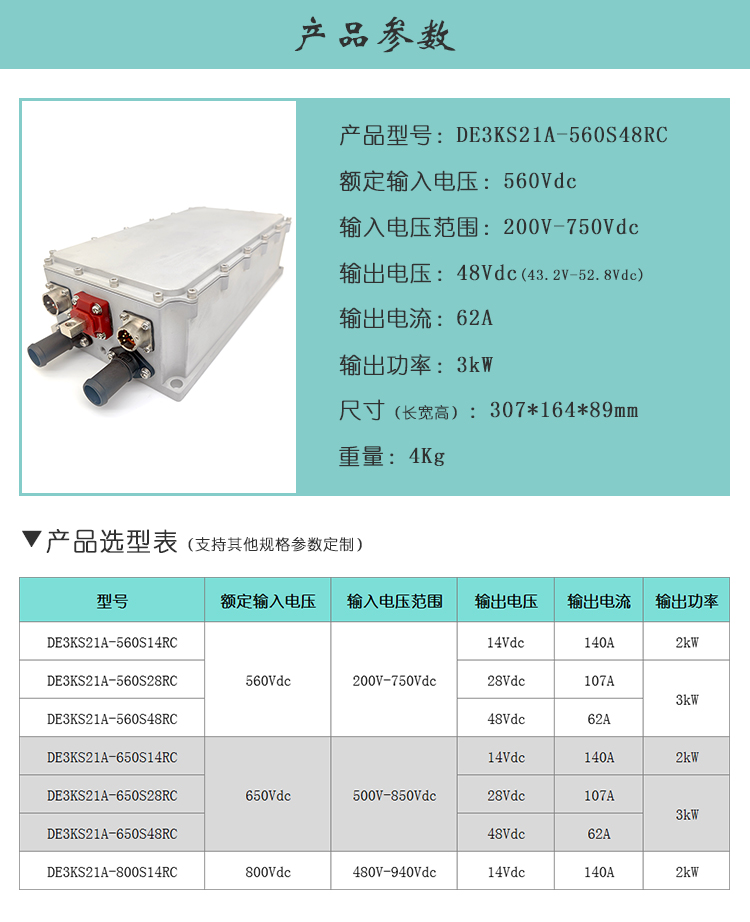

輸出電壓：14Vdc & 28Vdc & 48Vdc

Output Voltage

保護功能/ Protection

輸出過流保護/Output Current Limited Protect

輸出短路保護/Output Short Circuit Protection

輸出過壓保護/Output over Voltage Protect

輸出欠壓保護/ Output under Voltage Protect

輸入過壓保護/ Input over Voltage Protection

輸入欠壓保護/ Input under Voltage Protection

過溫保護/Over Temperature Protect

CAN 通信故障/CAN Communication Fault

報通訊故障不關機，CAN 通訊恢復正常后，取消報通

訊故障。

does not shut down when it reports communication failure.

After CAN communication returns to normal, the

communication failure report will be canceled.

工作環境溫度： -30℃～+60℃

Working

貯存溫度  -40℃~+105℃

Storage

工作濕度 5％～85％RH（不冷凝） (Non-condensing)

Working

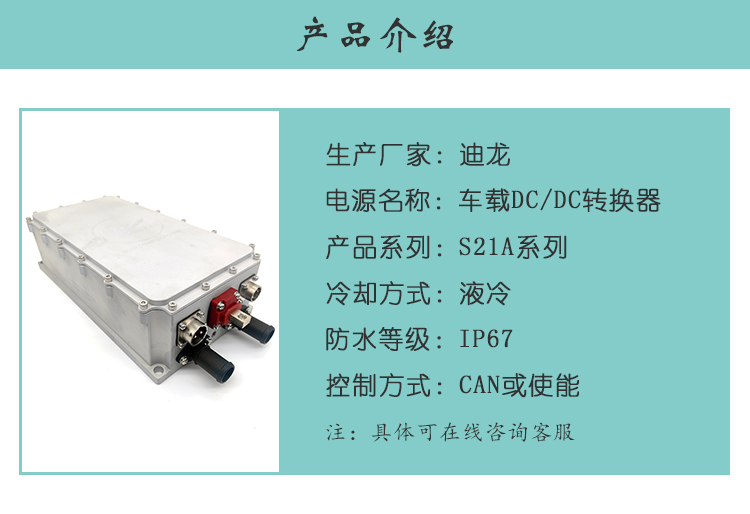

冷卻方式：水冷/Water Cooling

Cooling Method

IP防護等級：IP67

IP Protection Grade

耐振動性能：3.12 in QC/T 413-2002 (other parts)

Vibration Resistance

DC直流轉換器廣泛應用：新能源乘用車、新能源商用車、新能源工程機械車、

                                          新能源叉車、   新能源牽引車、  移動儲能車、

                                          AGV以及光伏和其他儲能換電設備。

DC DC converters are widely used in new energy passenger vehicles, new energy commercial vehicles, new energy construction machinery vehicles, new energy forklifts, new energy tractors, mobile energy storage vehicles,

 AGVs, photovoltaic and other energy storage and power exchange equipment.
